“Stonex” (Made in Italy) RTK GPS GNSS Receiver Model S900 D.H.A Phase II Extension, Karachi, Pakistan
Posted on September 19, 2019 / 26
Listing Type : Building & Construction
Location : karachi

“Stonex” (Made in Italy) RTK GPS GNSS Receiver Model S900, Channels 555, Multi Constellation, Internal Memory 8GB, RTK Accuracy: 8mm+1ppm, Web UI Control, Electronic Bubble, Intelligent Batteries, Rugged RTK, Tilt Centering

OVERVIEW

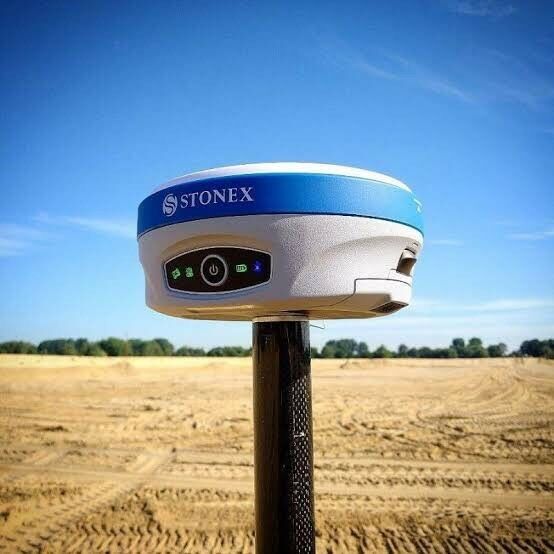

The S900 GNSS receiver from Stonex features a new, high accuracy multi-constellation antenna, a powerful UHF transmitter and a GSM 4G modem combined with a light and modern design.

The S900 contains an integrated E-Bubble sensor that allows the measurement of difficult points with the pole not level. It is possible to measure points with a pole incline of 30° even in harsh environments and in the presence of magnetic fields. You can view the bubble through the software without having to check the bubble of the pole.

With the Stonex S900, it is possible to insert 2 smart hot swappable batteries at the same time, providing up to 12 hours of operation on a single charge. The power level can be checked and seen on the controller or directly on a led bar on the battery.

The S900 has an IP67 rating for water and dust. It is also designed to be able to withstand a 2 meter pole drop onto a concrete floor with no damage. This makes the S900 tough enough for even the harshest environments.

FEATURES
555 channels to track GPS, GLONASS, BeiDou and Galileo
E-Bubble sensor allows for accurate measurements even when pole is not level
Advanced technology for fast initialization and reinitialization time
Web UI to monitor and change settings
2 hot swappable batteries that provide up to 12 hours of operation on a single charge
IP67 rating for water and dust
Designed to withstand 2 m pole drop onto a concrete floor with no damage

TECHNICAL SPECIFICATIONS
Channels: 555
GPS: L1 C/A, L1C, L2C, L2P, L5
GLONASS: L1 C/A, L2C, L2P, L3, L5
BeiDou: B1, B2, B3
Galileo: E1, E5a, E5b, E5 AltBOC, E6
QZSS: L1 C/A, L1C, L2C, L5, L6
SBAS: L1, L5
IRNSS: L5
Position Rate: 5 Hz
Signal Reacquisition: < 1 sec
RTK Signal Initialization: Typically < 10 s
Hot Start: Typically < 15 s
Initialization Reliability: > 99.9 %
Internal Memory: 8 GB
Battery: 2 rechargeable and replaceable intelligent lithium batteries
7.2 V – 3400 mAh
Voltage: 9 to 22 V DC external power input with over-voltage protection (5 pins Lemo)
Working Time: Up to 12 hours
Charge Time: Typically 4 hours
Dimensions: 157 mm x 76 mm
Weight: 1.19 kg (one battery)
1.30 kg (two batteries)
Operating Temperature: -40 °C to 65 °C
Storage Temperature: -40 °C to 80 °C
Waterproof/Dustproof: IP67
Shock Resistance: Designed to endure to a 2m drop pole on concrete floor with no damage
Vibration: Vibration resistant

ACCESSORIES INCLUDED

o Base with Internal Radio

o Rover with Internal Radio

o Data Controller Getec

o Field Software

o Stonex Post Processing Software (Cube manager-p)

o Tripod for Base

o Tribrach with adopter and optical plummet

o Fiber Pole for Rover

Warranty 3 Years

Listing Type : Building & Construction
Location : karachi
“Stonex” (Made in Italy) RTK GPS GNSS Receiver Model S900
Listing Type : Building & Construction
Location : karachi
“Stonex” (Made in Italy) RTK GPS GNSS Receiver Model S900

“Stonex” (Made in Italy) RTK GPS GNSS Receiver Model S900, Channels 555, Multi Constellation, Internal Memory 8GB, RTK Accuracy: 8mm+1ppm, Web UI Control, Electronic Bubble, Intelligent Batteries, Rugged RTK, Tilt Centering

OVERVIEW
The S900 GNSS receiver from Stonex features a new, high accuracy multi-constellation antenna, a powerful UHF transmitter and a GSM 4G modem combined with a light and modern design.

The S900 contains an integrated E-Bubble sensor that allows the measurement of difficult points with the pole not level. It is possible to measure points with a pole incline of 30° even in harsh environments and in the presence of magnetic fields. You can view the bubble through the software without having to check the bubble of the pole.

With the Stonex S900, it is possible to insert 2 smart hot swappable batteries at the same time, providing up to 12 hours of operation on a single charge. The power level can be checked and seen on the controller or directly on a led bar on the battery.

The S900 has an IP67 rating for water and dust. It is also designed to be able to withstand a 2 meter pole drop onto a concrete floor with no damage. This makes the S900 tough enough for even the harshest environments.

FEATURES
555 channels to track GPS, GLONASS, BeiDou and Galileo
E-Bubble sensor allows for accurate measurements even when pole is not level
Advanced technology for fast initialization and reinitialization time
Web UI to monitor and change settings
2 hot swappable batteries that provide up to 12 hours of operation on a single charge
IP67 rating for water and dust
Designed to withstand 2 m pole drop onto a concrete floor with no damage

TECHNICAL SPECIFICATIONS
Channels: 555
GPS: L1 C/A, L1C, L2C, L2P, L5
GLONASS: L1 C/A, L2C, L2P, L3, L5
BeiDou: B1, B2, B3
Galileo: E1, E5a, E5b, E5 AltBOC, E6
QZSS: L1 C/A, L1C, L2C, L5, L6
SBAS: L1, L5
IRNSS: L5
Position Rate: 5 Hz
Signal Reacquisition: < 1 sec
RTK Signal Initialization: Typically < 10 s
Hot Start: Typically < 15 s
Initialization Reliability: > 99.9 %
Internal Memory: 8 GB
Battery: 2 rechargeable and replaceable intelligent lithium batteries
7.2 V – 3400 mAh
Voltage: 9 to 22 V DC external power input with over-voltage protection (5 pins Lemo)
Working Time: Up to 12 hours
Charge Time: Typically 4 hours
Dimensions: 157 mm x 76 mm
Weight: 1.19 kg (one battery)
1.30 kg (two batteries)
Operating Temperature: -40 °C to 65 °C
Storage Temperature: -40 °C to 80 °C
Waterproof/Dustproof: IP67
Shock Resistance: Designed to endure to a 2m drop pole on concrete floor with no damage
Vibration: Vibration resistant

ACCESSORIES INCLUDED

o Base with Internal Radio

o Rover with Internal Radio

o Data Controller Getec

o Field Software

o Stonex Post Processing Software (Cube manager-p)

o Tripod for Base

o Tribrach with adopter and optical plummet

o Fiber Pole for Rover

Warranty 3 Years
